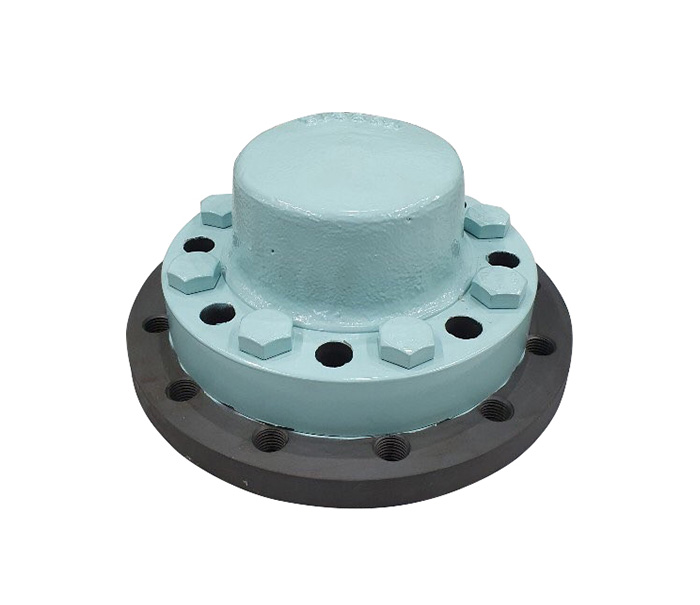

RELIEF VALVE

FEATURES
  1. 1. Simple design and excellent seat tightness.
  2. 2. High reliability in high pressure.
  3. 3. The exact indicator of valve position.
  4. 4. The starting air shut-off valve supplies the starting air pipe with starting air.
    The starting air shutoff valve has a hand-wheel with three positions.
SPECIFICATIONS
Specifications listed may be changed without notice to improve or improve quality.
MODEL SUF-SA
Operating Fluid Air
Temperature Range Max. 55°c
Type Spring
Setting Pressure 33bar (Max. 35bar)
Valve Size 125A~200A
End Connection JIS / ISO Standard
Material Body Ductile Cast Iron
Trim Carbon Steel
