PRESSURE REGULATING & REDUCING VALVE

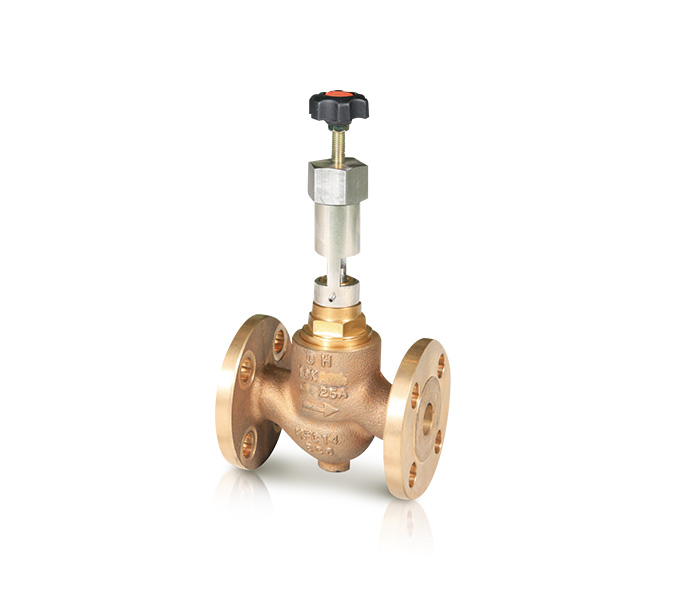

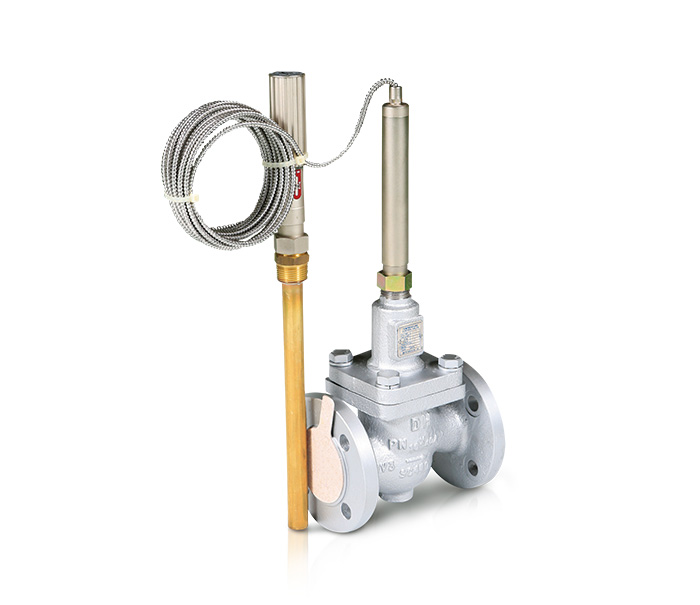

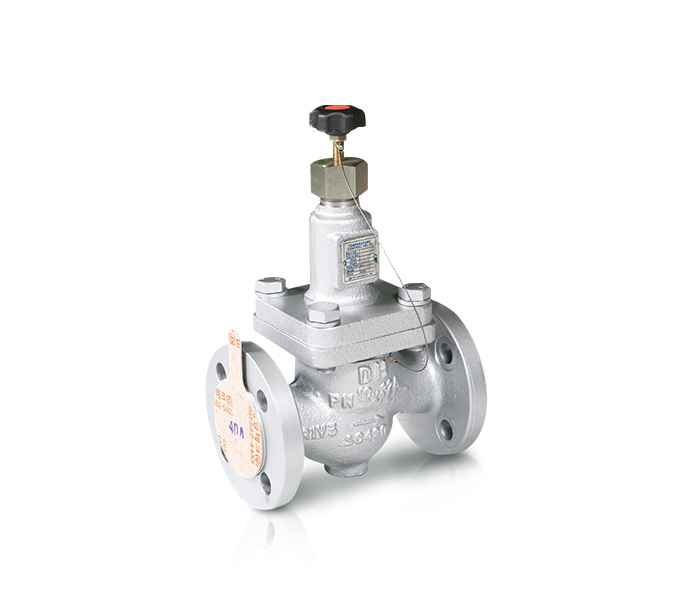

2-WAY TEMPERATURE REGULATING VALVE

FEATURES
  1. 1. The installation is very simple.
  2. 2. Simply construction and semi-permanent with less malfunction.
  3. 3. Being self-control type, so an auxiliary power is not required.
  4. 4. Operating can be used under the condition of high/differential pressure.
  5. 5. Pilot type has considerably large capacity.(TR-PL)
  6. 6. The temperature variation is small, so it can be controlled precision.
  7. 7. This is proportion control type valve by temperature change.
  8. 8. The manual handle which is used for both emergency handle and bypass is provided.
  9. 9. DTR-BL is available for Thermal oil.
SPECIFICATIONS
Specifications listed may be changed without notice to improve or improve quality.
swipe좌, 우 드래그가능
MODEL DTR-DT DTR-BL DTR-PL
Working Fluids Steam, Water, Liquid, Oil, Thermal oil
Temperature Range / Press 0℃ ~ 150℃ / 16K
Valve Type Direct Bellows Pilot
Valve Size 15A ~ 50A 15A ~ 50A 32A ~ 125A
End Connection JIS / DIN / ISO / ANSI Standard
Material Body Cast Steel, Ductile Cast Iron, Cast Bronze
Trim Stainless Steel
Accessory Heat sensor, Manual Handle
