ENGINE PART & CONTROLLER

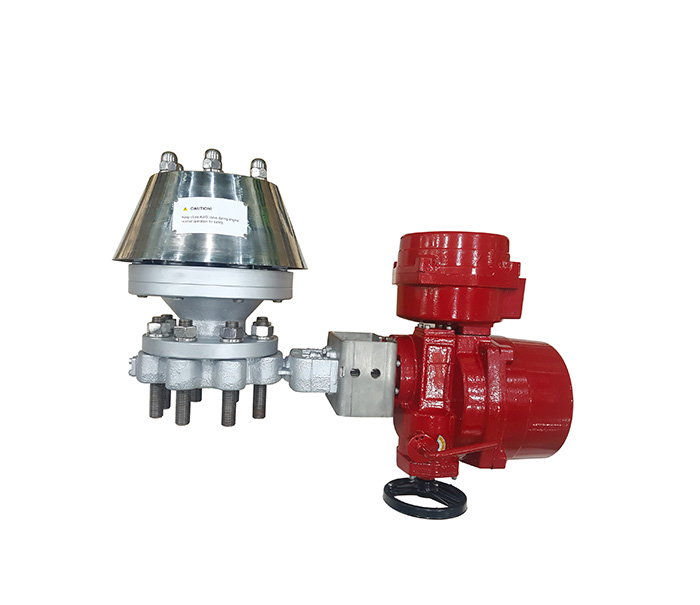

AIR WASTE GATE VALVE - MANULE/MOTOR TYPE

FEATURES
  1. 1. Simple design and excellent seat tightness.
  2. 2. It is silent by equipped with a silencer.
  3. 3. There are Lever type and Motor type.
  4. 4. Degree of valve opening can be set free.
SPECIFICATIONS
Specifications listed may be changed without notice to improve or improve quality.
swipe좌, 우 드래그가능
MODEL DAWS-BF DAWS-HD DAWS-MT
Working Fluids Air, Gas
Temperature Range 0℃ ~ 80℃
Type Lever Handle Motor
Valve Type Butterfly (Lug, Flange, Wafer)
Valve Size 40A ~ 200A
End Connection JIS / DIN / ISO / ANSI Standard
Material Body Cast Steel, Ductile Cast Iron
Trim Stainless Steel, NBR, Teflon
Accessory Silencer
