ENGINE PART & CONTROLLER

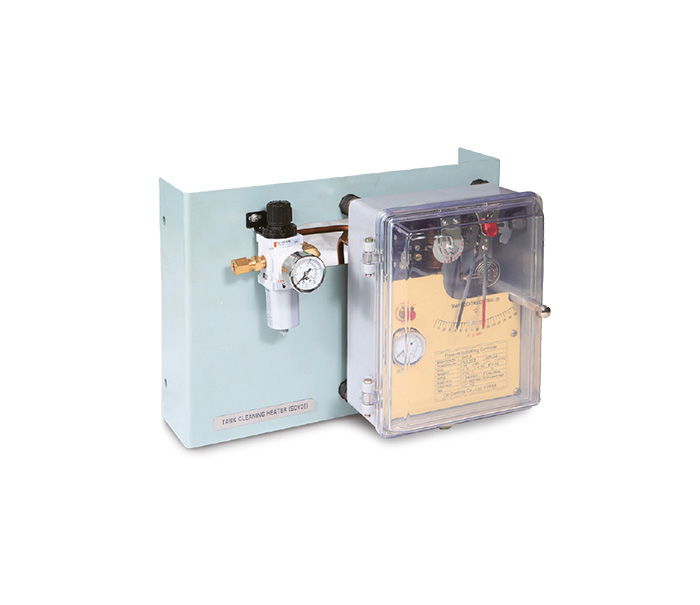

PNEUMATIC CONTROLLER

FEATURES
  1. 1. On-off, P, PI tuning functions.
  2. 2. Temperature and pressure control type.
  3. 3. Direct and reverse control action.
  4. 4. Easy setting control mode.
  5. 5. Rapid response.
SPECIFICATIONS
Specifications listed may be changed without notice to improve or improve quality.
MODEL PPC-TP PPC-PS
Supply Air Pressure 2.4 bar
Control Mode On-Off , P, PI
Control Action Direct, Reverse
Signal Input Temp Temp. sensor with capillary tube (5m)
Press Direct or through oil separator
Control Output 0.2 ~ 1.0 bar, 0.4 ~ 2.0 bar
Control Range Temp 0~70℃, 0~100℃, 0~150℃, 50~120℃, 50~150℃
Press 0~10 bar, 0~16 bar, 0~25 bar
Accessory (option) Positioner(P/P), Air Regulator
