ENGINE PART & CONTROLLER

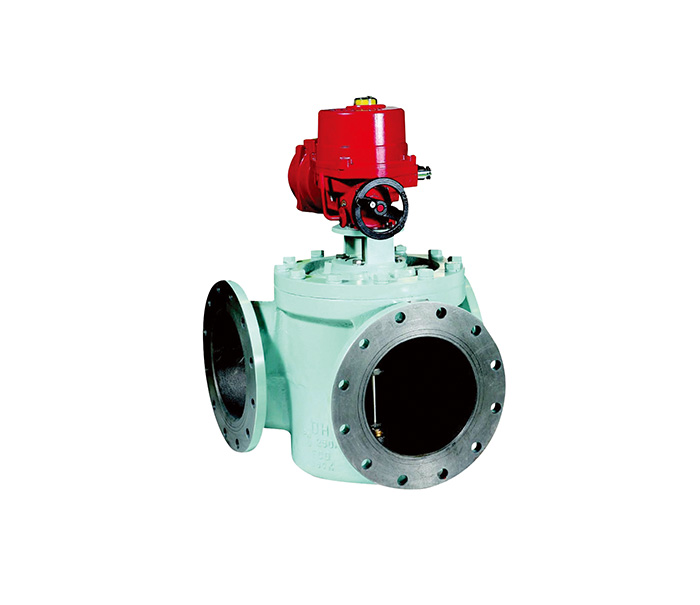

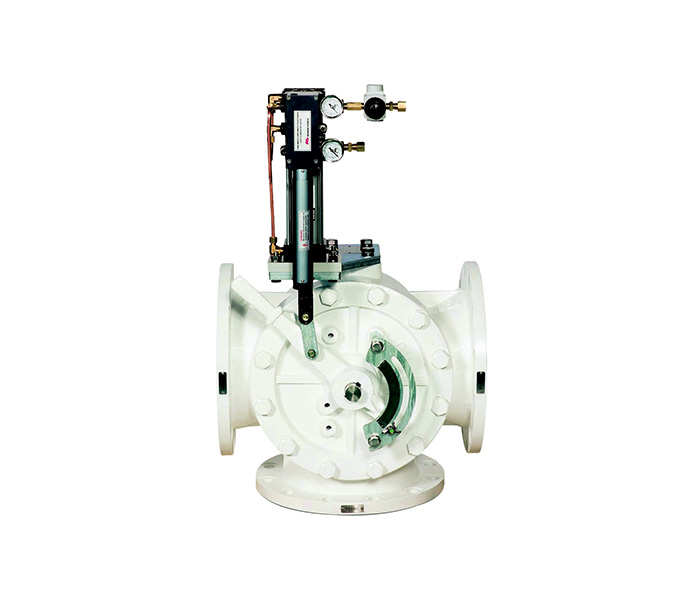

3-WAY ROTARY VALVE

FEATURES
  1. 1. The exact temperature control valve by controller.
  2. 2. Easy installation and maintenance.
  3. 3. More smooth throttling flow.
  4. 4. Flow direction changes are possible.
  5. 5. The emergency handle can be attached.
SPECIFICATIONS
Specifications listed may be changed without notice to improve or improve quality.
MODEL D3RT-MT D3RT-CY
Working Fluids Fresh Water, Sea Water, Oil
Temperature Range 0℃ ~ 100℃
Valve Size 80A ~ 600A
End Connection JIS / DIN / ISO / ANSI Standard
Material Body Ductile Cast Ironl
Trim Stainless Steel , Cast Bronze , Carbon Steel
Flow Characteristics Linear, On-Off
Actuator Type Elec. Motor Cylinder
Operating Source 110/220V AC 4 bar Air
Accessory Controller(E/P, P/P), Sensor(Temperature),Positioner(E/P, P/P), Air Regulator
